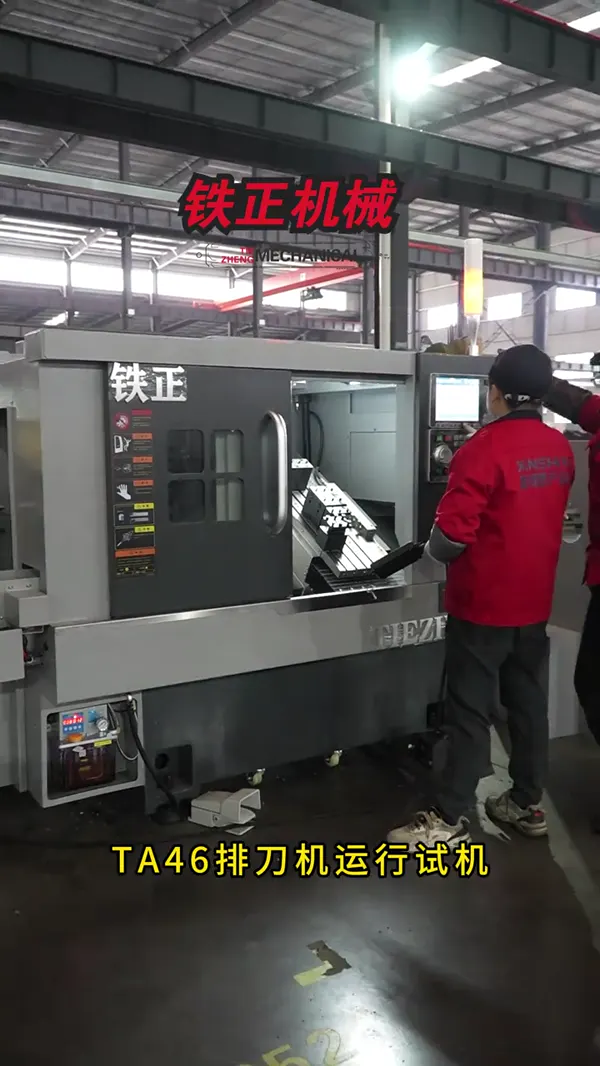

What is the Tiezheng TA46?
The Tiezheng TA46 is a 45-degree gang-tool slant-bed CNC lathe with 500 mm X-axis travel, 350 mm Z-axis travel and a maximum spindle speed of 5,000 rpm. It handles shaft-part cutting diameters up to 160 mm, disc-part cutting diameters up to 400 mm and bar diameters up to 45 mm. Workholding and tooling are selected to suit your part drawing and production requirements.
Which TA46 specifications support machine selection?
The specification table covers machining capacity, the 45-degree bed, spindle and chuck, both feed axes, guideways, ball screws, servo motors, accuracy and installation dimensions. Standard items and optional equipment are identified separately.
How should the TA46 be configured for a part?
Compare part diameter, length, bar or blank form, tolerances and operations with the machining envelope. The workholding, gang-tool arrangement, chip handling and automation package are selected during the drawing review.
What is the maximum shaft-part cutting diameter?
The maximum shaft-part cutting diameter is 160 mm. Maximum disc-part cutting diameter is 400 mm.
How fast can the X and Z axes traverse?
Maximum rapid traverse is 20 m/min on both X and Z axes.
What chuck and chip-removal options are listed?
The standard hydraulic hollow power chuck is 6 in (169 mm). Manual chip removal is standard; a scraper-chain chip conveyor is optional.
What space does the TA46 require?
Machine dimensions are 2.3 × 1.5 × 1.7 m and approximate machine weight is 2.2 t. Allow additional space for access, loading and the selected auxiliary equipment.
How do I request a TA46 quotation?
Send your part drawing, material, dimensions, critical tolerances, required operations, annual volume and target cycle time. Include workholding or automation needs, electrical standard and destination country. The quotation and technical agreement define the supplied configuration and acceptance requirements.
