What is the Tiezheng TZ451?

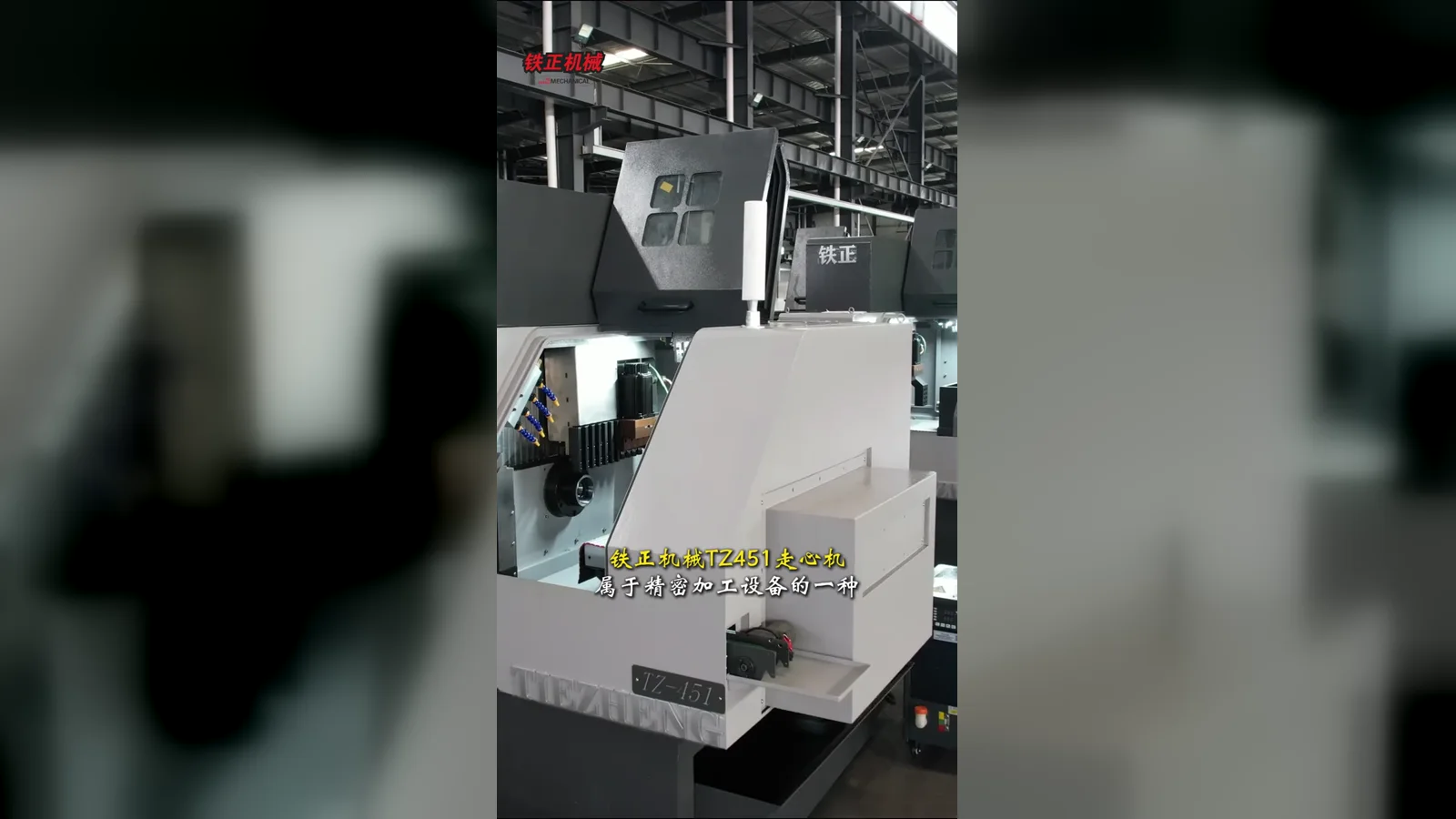

The Tiezheng TZ451 is a Swiss-type CNC lathe with SYNTEC 220TB control and main and back spindle speeds up to 6,000 rpm. Its machining diameter is 42 mm without a guide bush or 28 mm with a guide bush. Turning and powered-tool positions support process planning for front, side and back operations; guide-bush mode, workholding and tooling are selected for your parts.
How do guide-bush modes affect TZ451 selection?
Maximum machining diameter is 42 mm without a guide bush and 28 mm with a guide bush. Select the mode with the part geometry, stock preparation, support and machining sequence in mind.
Which spindle and tooling specifications are available?
The table lists main and back spindle speeds, drilling and threading capacities, turning and powered-tool positions, feed-axis designations, rapid traverse, servo motor power and installation dimensions. These details help plan the required turning, milling and drilling sequence.
What controller is listed for the TZ451?
The TZ451 is specified with SYNTEC 220TB control. Confirm the final controller package and required functions in the quotation.
What are the main and back spindle speeds and motor powers?
Maximum main and back spindle speeds are 6000 rpm. Main spindle motor power is 7.5 kW and sub-spindle motor power is 7.5 kW.
Which feed axes are listed?
The feed-axis designations are X1, Y1, Z1, X2, Y2 and Z2. Rapid traverse is 20 m/min on X1 and 22 m/min on Y1, Z1, X2, Y2 and Z2.
What are the TZ451 dimensions and weight?
Machine dimensions are 2700 × 1500 × 1800 mm and machine weight is 4000 kg. Include installation access and auxiliary equipment in the floor-space plan.
How do I request a TZ451 quotation?
Send your part drawing, material, dimensions, critical tolerances, required operations, annual volume and target cycle time. Include workholding or automation needs, electrical standard and destination country. The quotation and technical agreement define the supplied configuration and acceptance requirements.
