Tiezheng V1168 Vertical Machining Center

Still choosing a model? Describe your part or operation. A model or drawing is not required for first contact.

The Tiezheng V1168 is a V-series vertical machining center with a 1200 x 600 mm table, 1100 x 600 x 800 mm X/Y/Z travel and a 1000 kg table load. The reviewed source sheet records an 8,000 rpm belt-drive BT40 spindle and a 12,000 rpm direct-drive option. Buyers should confirm tooling, control, tolerance and production requirements through RFQ.

Request a machine quote View specifications

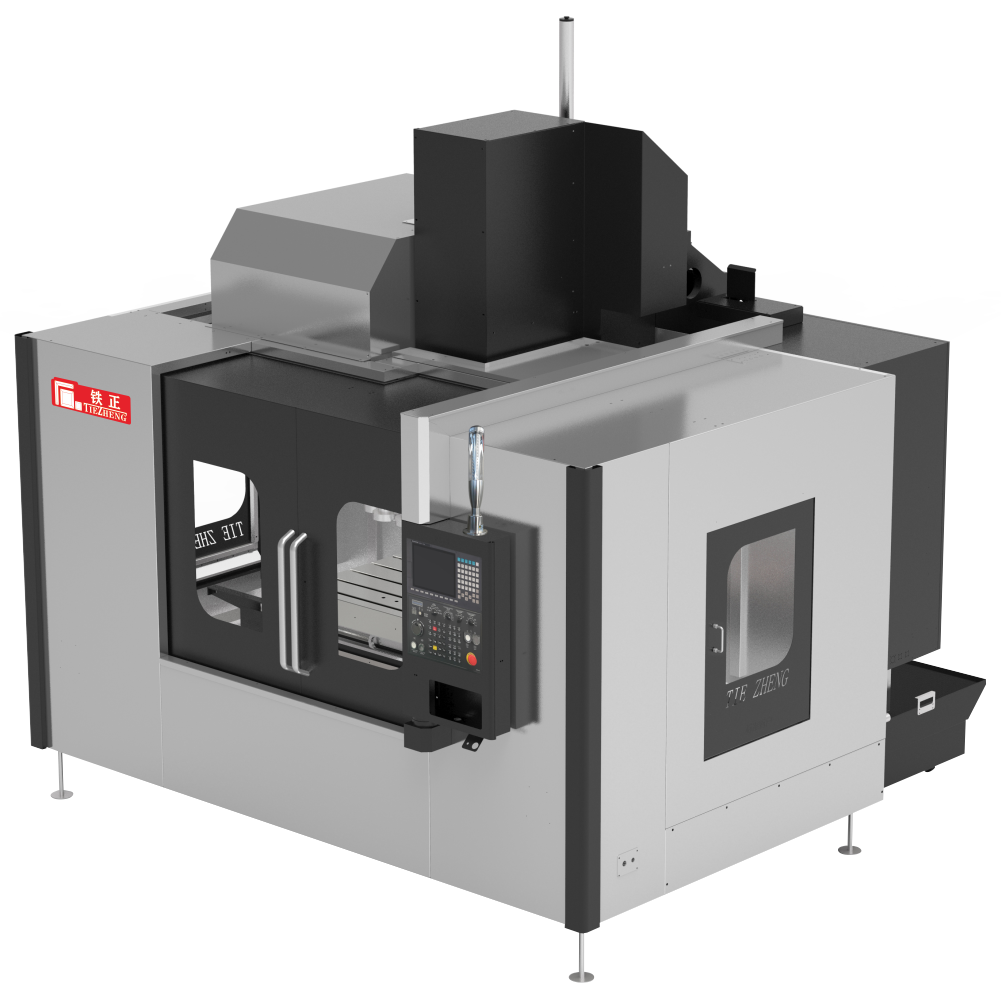

Product media Product overview image for evaluating V1168 layout, guarding, and machine category before RFQ.

Review V1168 for your part

For milling and drilling prismatic parts, plates or similar components, compare this model’s table, X/Y/Z travels, rated load and spindle or tool interface. Check the whole part with its fixture and the required tool access. Confirm the material, cutting conditions and supplied options for the actual job; axis travel alone does not establish usable machining space.

Published comparison figures

Table size: 1200 x 600 mm
X/Y/Z-axis travel: 1100 x 600 x 800 mm
Distance from spindle nose to table surface: 120-920 mm
Distance from spindle center to column guideway surface: 660 mm

Start with your part

Describe the part or operation you know; a model and drawing are optional for first contact. Add material, critical tolerances and quantity if available.

Discuss this model

Compare this model with alternatives

What to include in your inquiry

Confirm inspection, delivery, installation, training and after-sales responsibilities in the proposal. Review delivery and support scope

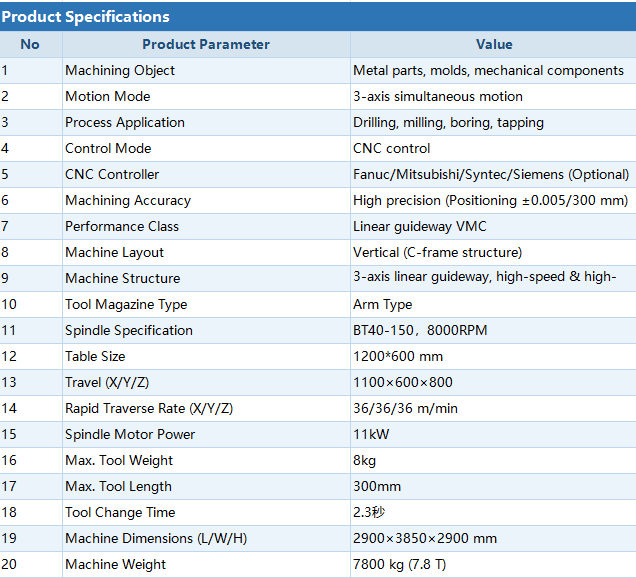

Key specifications

Table size	1200 x 600 mm
X/Y/Z-axis travel	1100 x 600 x 800 mm
Distance from spindle nose to table surface	120-920 mm
Distance from spindle center to column guideway surface	660 mm
Maximum table load	1000 kg
Standard spindle drive configuration	Belt drive
Standard spindle speed	8000 rpm
Optional spindle drive configuration	Direct drive
Optional spindle speed	12000 rpm
Spindle power	11 kW
Spindle taper	BT40-150
G00 rapid traverse	36/36/36 m/min
G01 cutting feed	1-10000 mm/min
Servo motor rated torque	22/22/22B N-m
Servo motor speed	3000 rpm
Servo motor connection type	Direct coupling

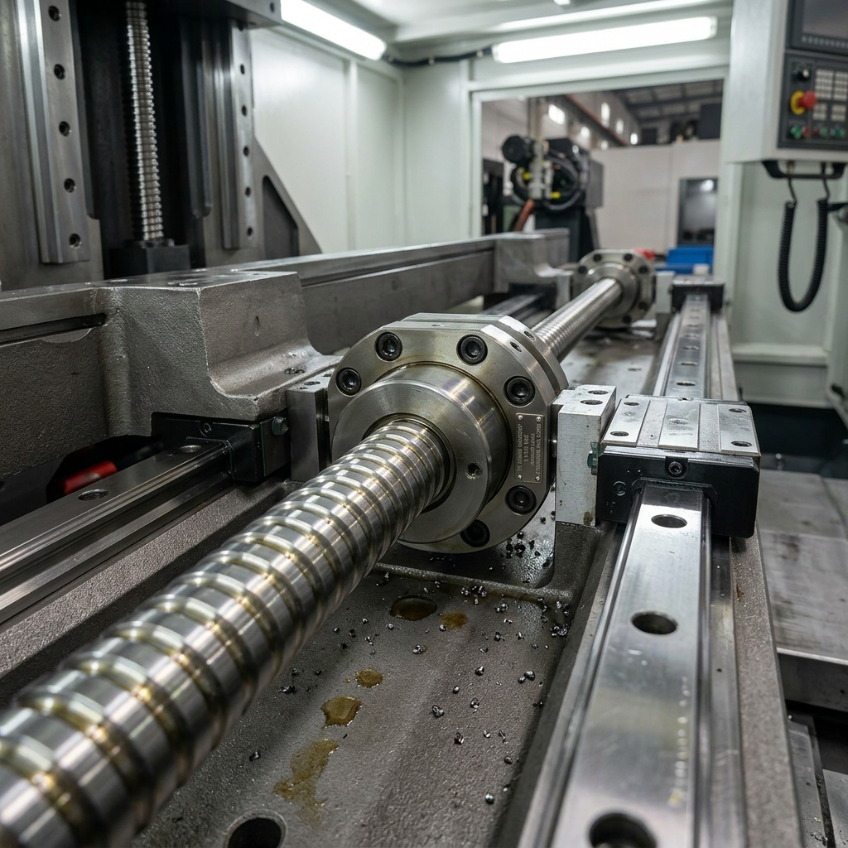

Ball screw model	4012
Positioning accuracy	+/-0.005/300 mm
Repeatability	+/-0.003/300 mm
Minimum input increment	0.001 mm
Tool magazine type	Arm type
Tool magazine capacity	24 pcs
Tool change time	2.2 s
Maximum tool weight	8 kg
Lubricating oil capacity	4 L
Power supply capacity	23 kW
Coolant tank capacity	300 L
Approximate machine weight	8.8 t
Machine length	2900 mm
Machine width	3850 mm
Machine depth	2900 mm
Machine height	2500 mm
Standard chip removal method	Single hinge belt
Optional chip removal method	Twin screw

What is the Tiezheng V1168 used for?

The V1168 is a three-axis vertical machining center for milling, drilling and tapping work that fits its reviewed table and travel envelope. Final process suitability depends on the part drawing, material, workholding, cutter access and tolerance requirements.

Which V1168 configuration is documented?

The bound Tiezheng parameter sheet records a 1200 x 600 mm table, 1100 x 600 x 800 mm X/Y/Z travel, 1000 kg maximum table load and an 11 kW BT40 spindle. An 8,000 rpm belt-drive spindle is standard in the sheet, while a 12,000 rpm direct-drive spindle is listed as an option.

How should buyers use these specifications?

Use the published values for model comparison and RFQ preparation. The final quotation and acceptance record should confirm the selected CNC control, tooling, chip and coolant handling, electrical standard, optional equipment and any drawing-led process changes.

What should be sent for a V1168 RFQ?

Send the part drawing, material, critical tolerances, annual volume, target cycle time, preferred control, automation requirement and destination country.

Is the optional spindle included by default?

No. The 12,000 rpm direct-drive spindle is identified as an optional configuration in the source parameter sheet and must be confirmed in the quotation.

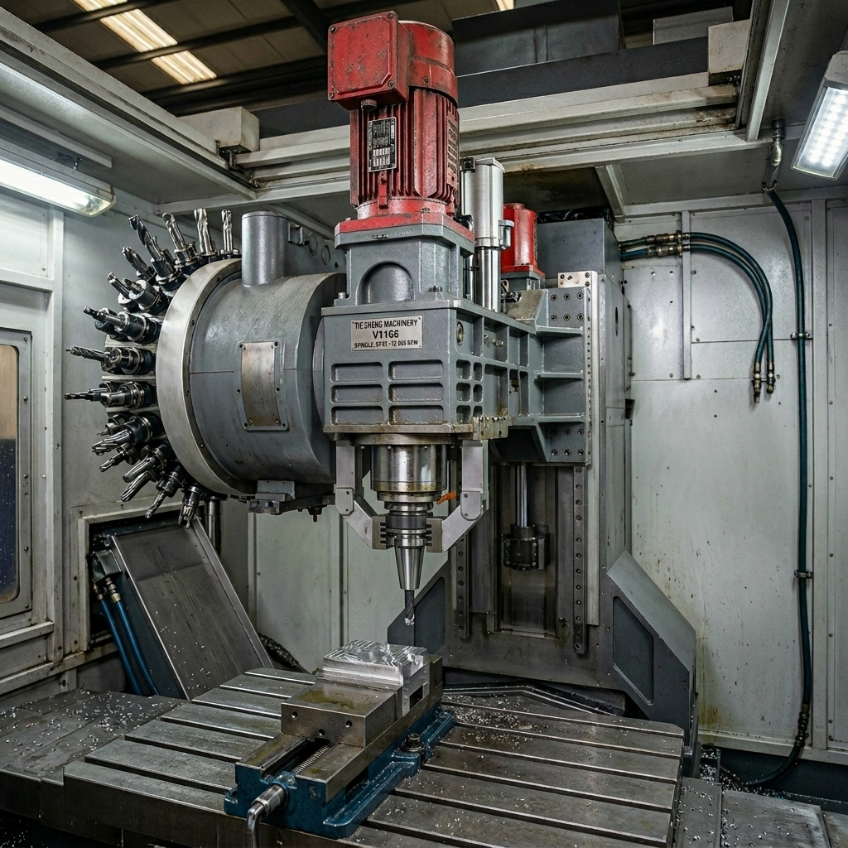

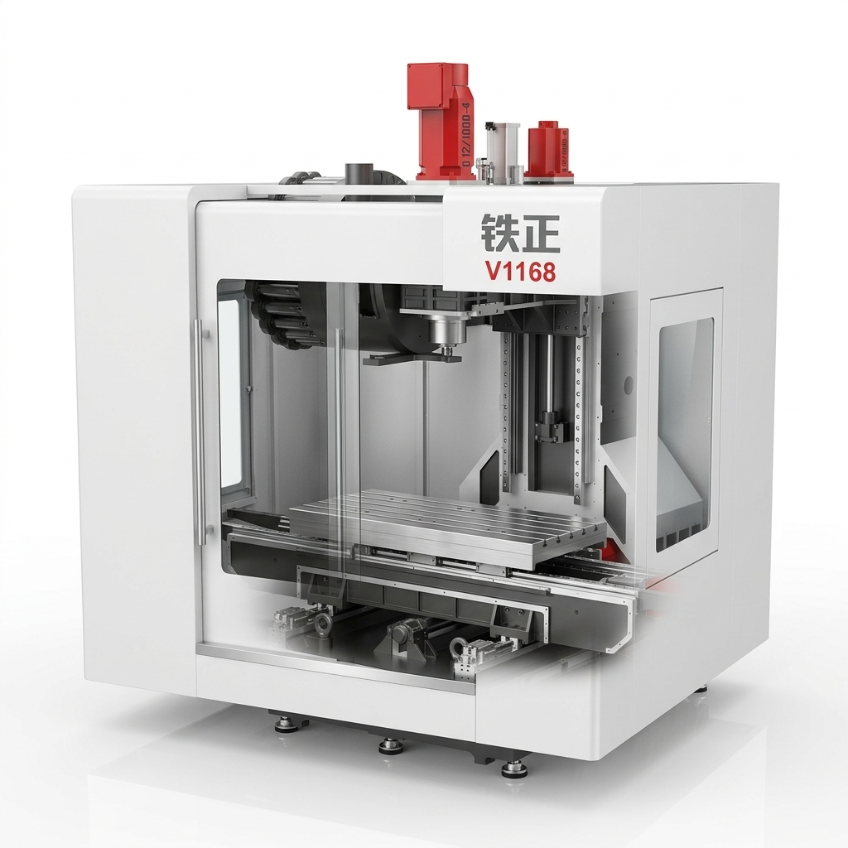

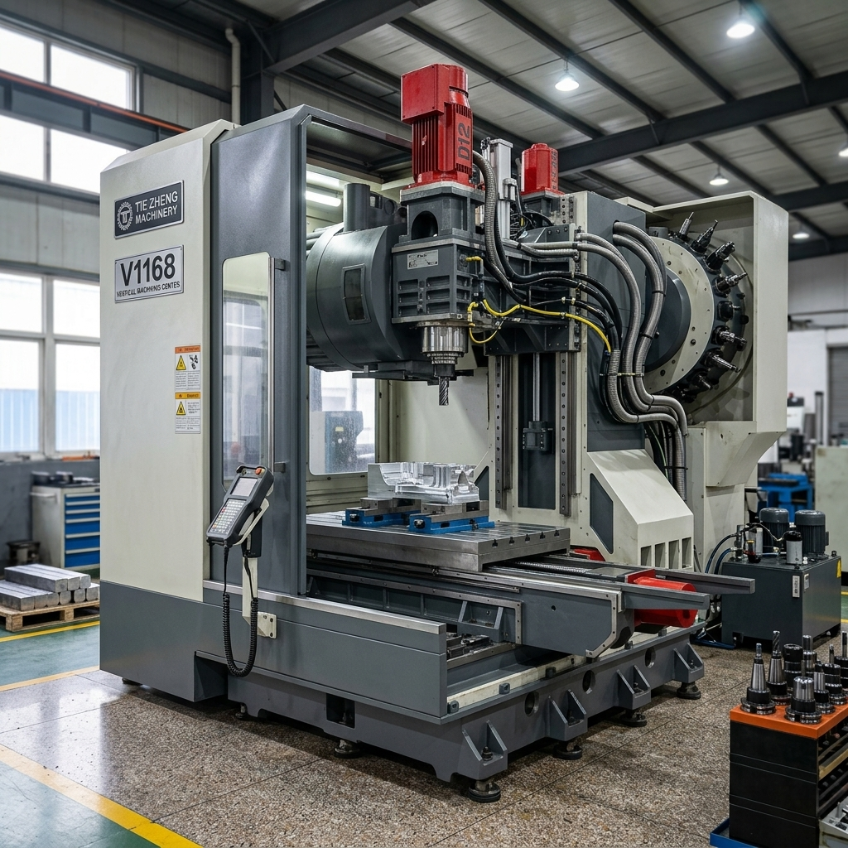

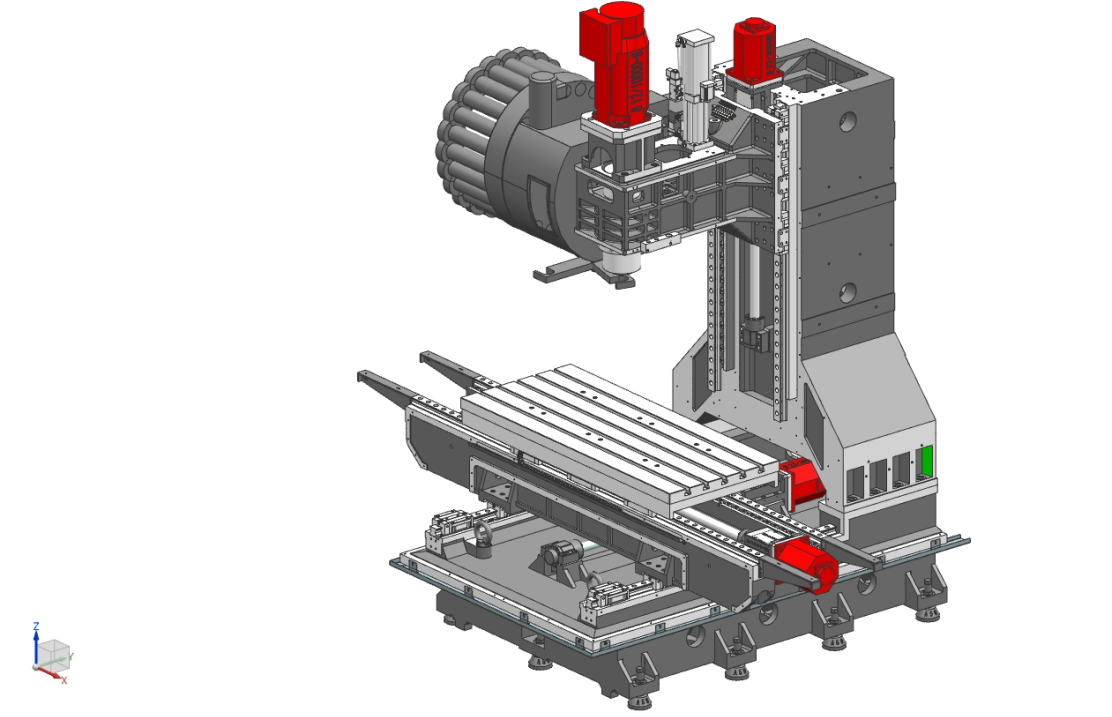

Product gallery

Machine views and production details

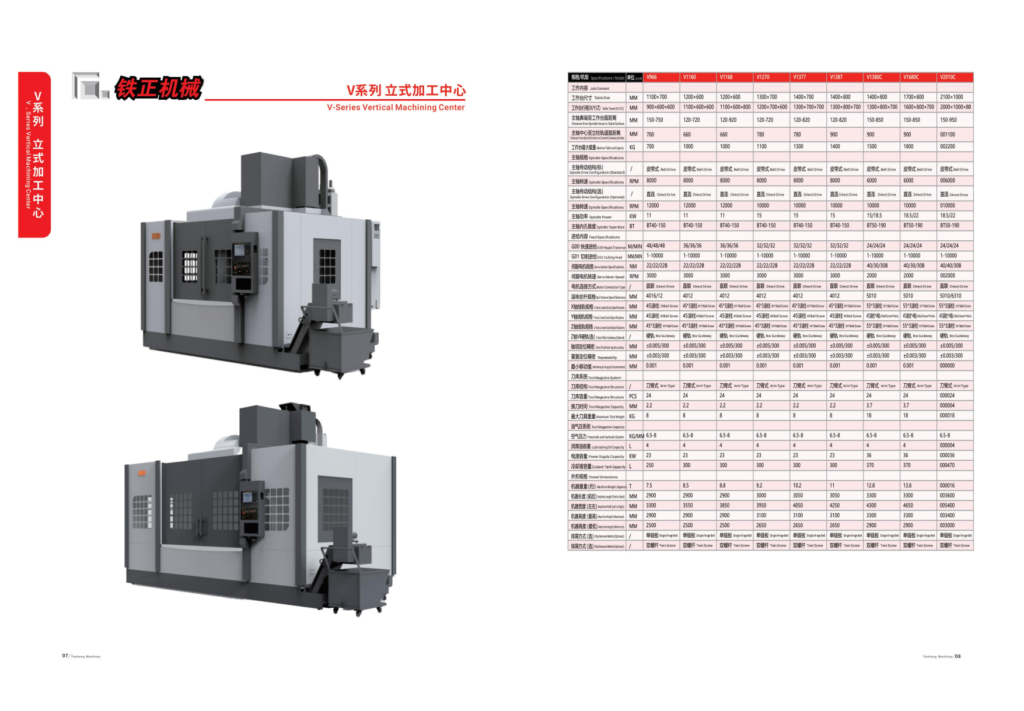

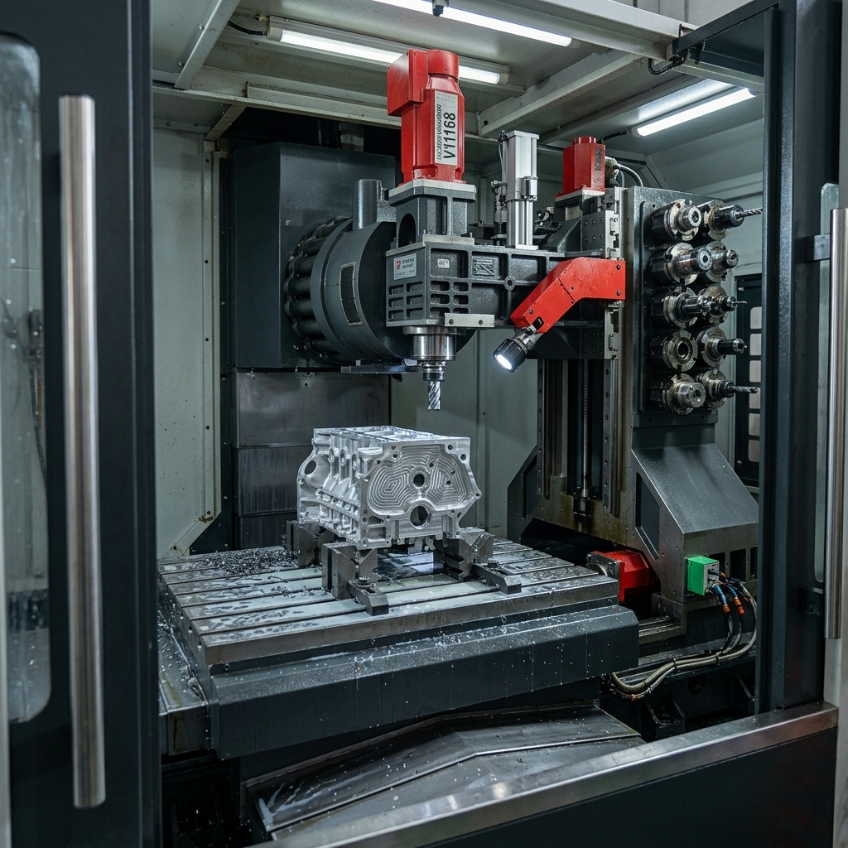

Tiezheng V1168 vertical machining center product overview image for CNC machine specification review. — **Product overview image for evaluating V1168 layout, guarding, and machine category before RFQ.** Open full-size view

Video overview

V1168 Vertical Machining Center Video

Watch this V1168 video to review the machine layout, working environment and application suitability before requesting a quotation.

Technical documents

Which documents should buyers review?

Request the latest configuration details, drawing review and applicable technical documents with your RFQ.
