What is the Tiezheng VF1010C-2?

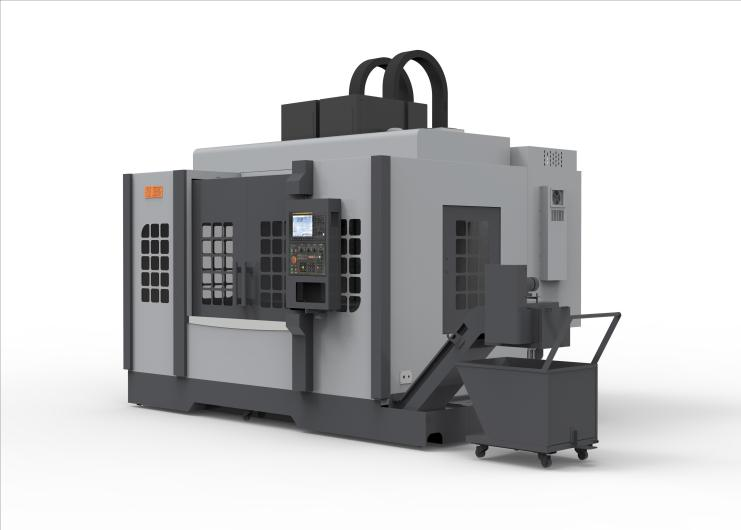

The VF1010C-2 is a twin-spindle vertical linear-guide machining center positioned at the largest reviewed table and travel envelope in this VF batch. The reviewed source records two spindles and two Z axes; final process suitability still depends on the part drawing, material, fixture, cutter access and required tolerance.
Which VF1010C-2 work envelope is documented?

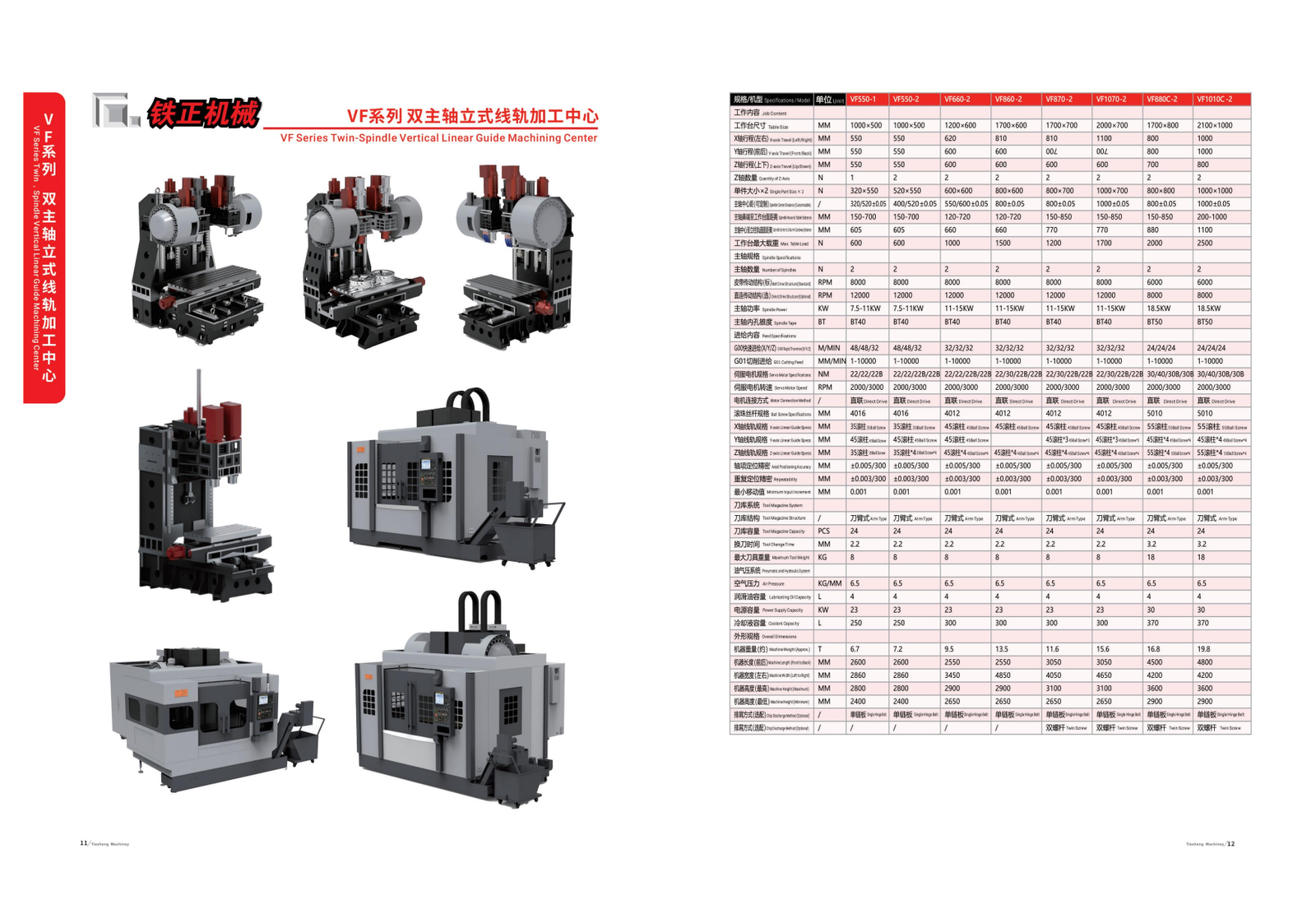

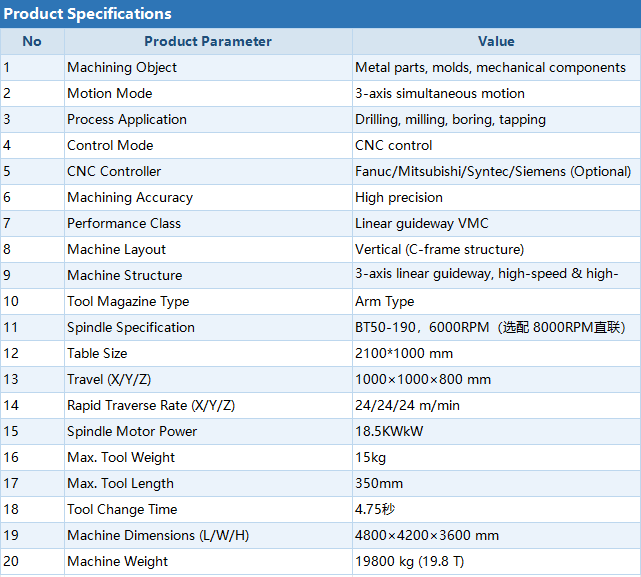

The bound parameter matrix records a 2100 x 1000 mm table, 1000 x 1000 x 800 mm X/Y/Z travel, a 200-1000 mm spindle-nose-to-table range and 1100 mm from spindle center to the column guideway surface.
Which spindle and tooling configuration is shown?

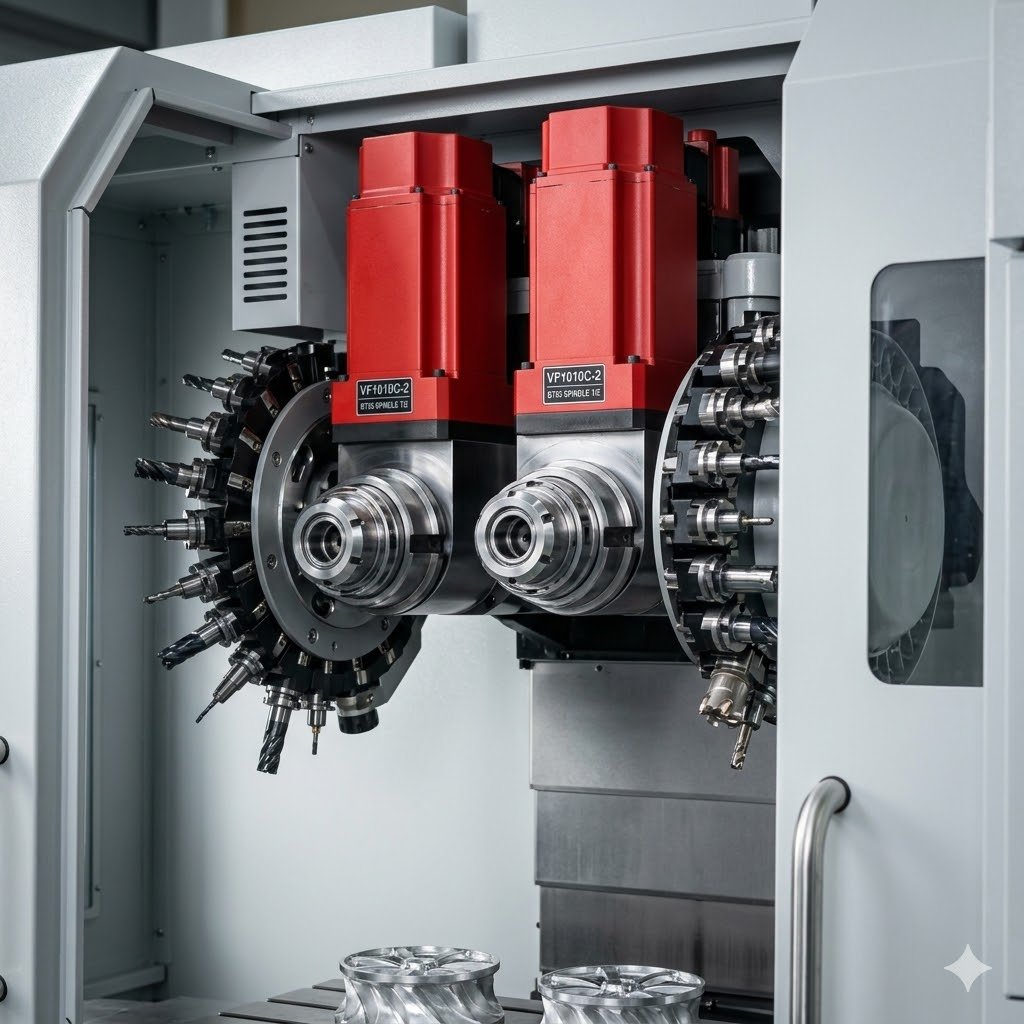

The reviewed matrix lists two BT50 spindles, 18.5 kW spindle power, a 6,000 rpm belt-drive standard configuration and a 8,000 rpm direct-drive option. The tool magazine is arm type with 24 positions. The matrix also lists twin-screw chip removal as an option for VF1010C-2.
How should buyers compare the VF1010C-2?
Use the published rows for model comparison and RFQ preparation, not as a final acceptance record. The quotation should confirm the selected CNC control, electrical standard, tooling, chip and coolant handling, automation interfaces and any drawing-led process changes.
What should be sent for a VF1010C-2 RFQ?
Send the part drawing, material, critical tolerances, annual volume, target cycle time, preferred control, workholding or automation requirement and destination country.
Are the optional items included by default?
No. Items listed as optional must be confirmed in the final quotation and configuration record.
