What is the Tiezheng VS650?

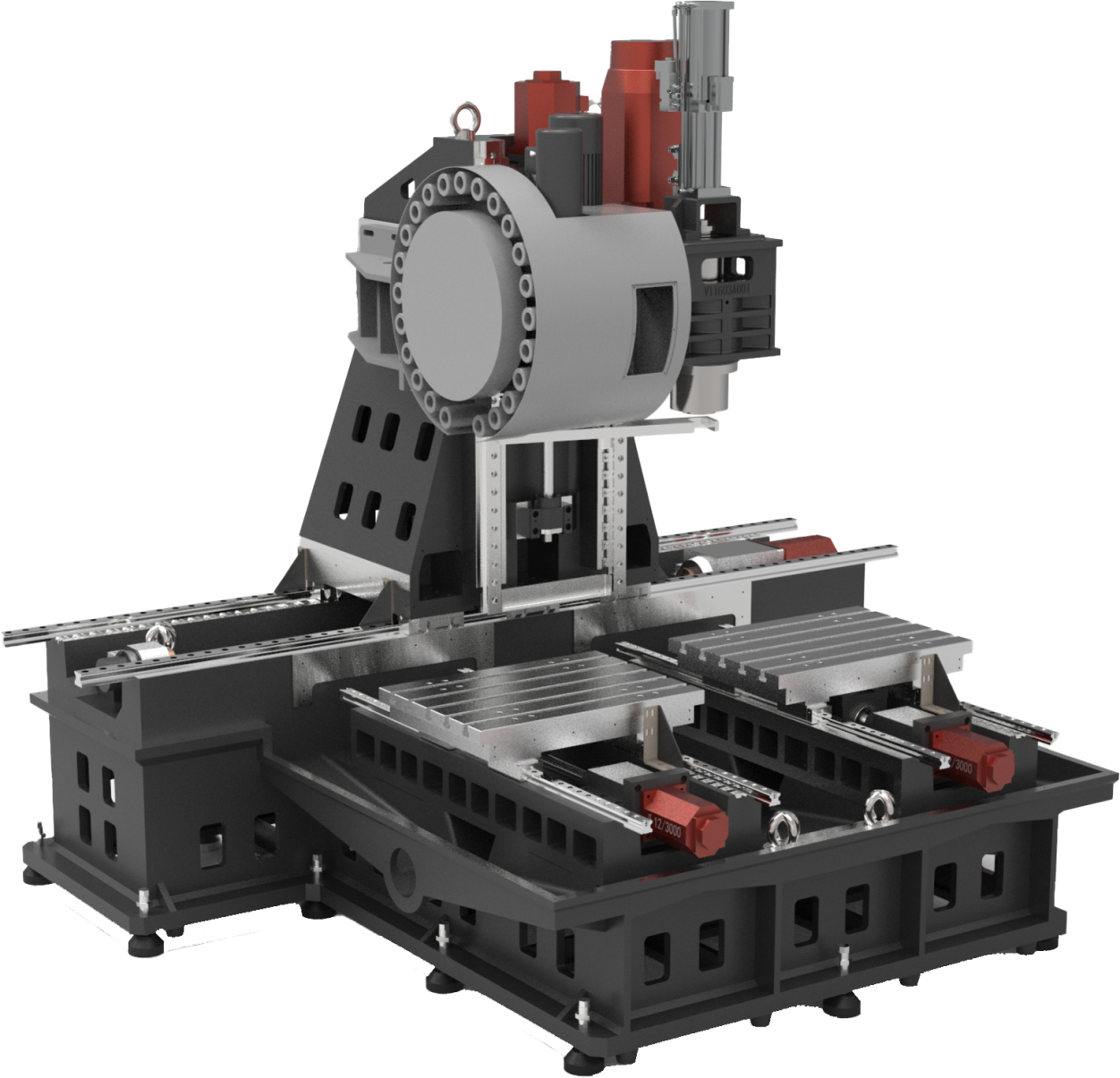

The VS650 is a vertical dual-pallet linear-guide machining center designed to let operators prepare one worktable while the other table is in the machining position. The reviewed source documents two tables and a BT40 spindle. Final process suitability depends on the part, fixture and required production plan.
What VS650 work envelope is documented?

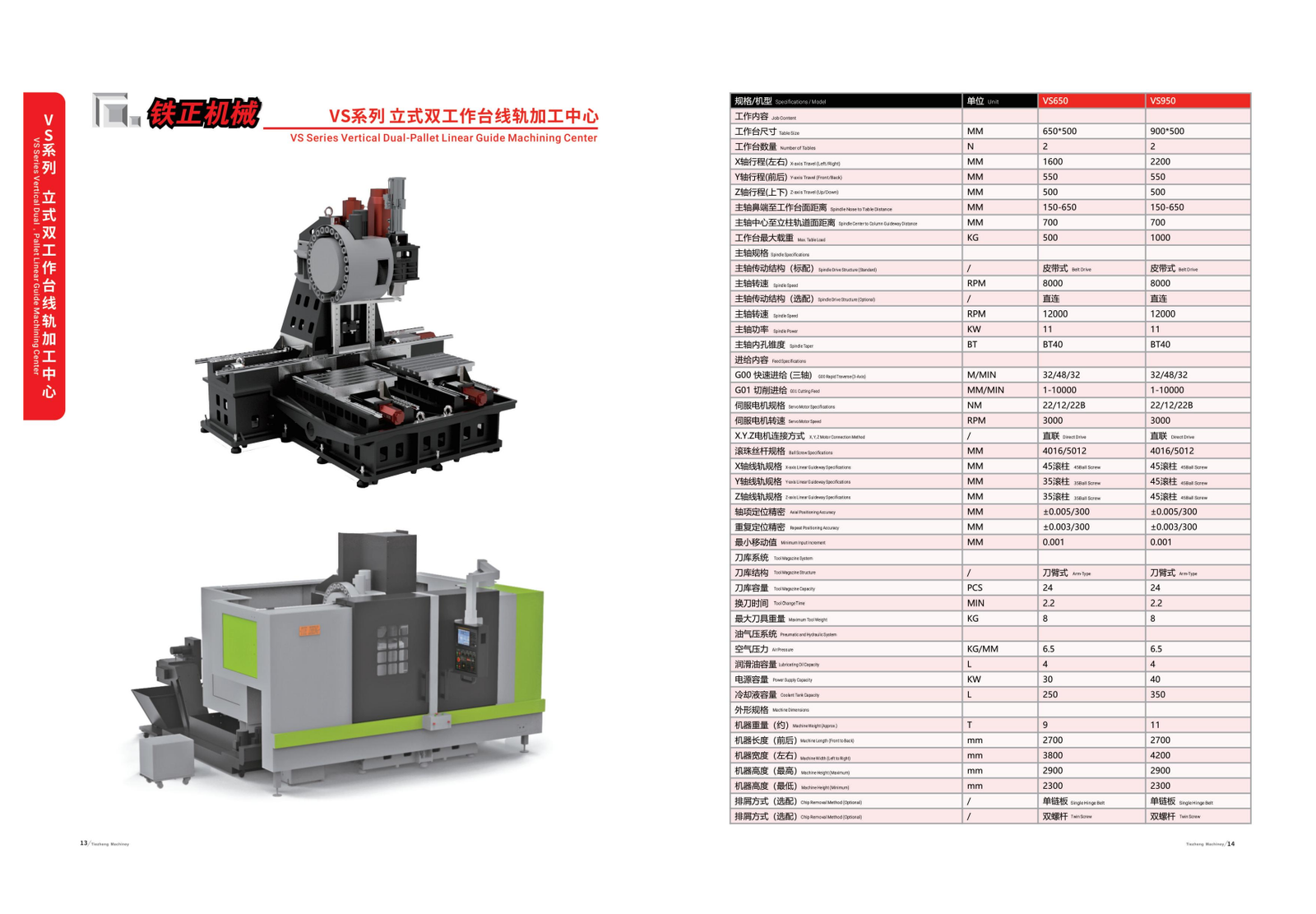

The reviewed matrix records two 650 x 500 mm tables, 1600 x 550 x 500 mm X/Y/Z travel, a 150-650 mm spindle-nose-to-table range and 500 kg maximum table load. Confirm fixture height, cutter access and transfer clearance against the part drawing.
Which spindle configurations are listed?
The source lists an 8000 rpm belt-drive spindle as standard and a 12000 rpm direct-drive configuration as optional. Both are documented with BT40 taper and 11 kW spindle power. The signed quotation and technical agreement control the supplied configuration.
How should buyers evaluate the dual-pallet layout?
Review part loading, fixture repeatability, operator access, chip evacuation, pallet-change sequence and required automation interfaces. The production video provides visible operating context but does not replace a cycle-time study or acceptance plan.
How should the VS650 be compared with another machining center?
Compare table count and size, axis travel, load, spindle configuration, tool capacity, utilities, machine dimensions and chip handling. Use source-listed specifications for screening, then validate the final selection against drawings and production targets.
What should be sent for a VS650 RFQ?
Send the part drawing, material, critical tolerances, workholding concept, annual volume, target cycle time, preferred control, spindle requirement, automation scope and destination country.
Does this page define the final supplied machine?
No. This page helps you compare the model. The signed quotation, technical agreement and acceptance record define the final supplied configuration.
