Tiezheng VT840 Vertical Drilling and Tapping Center

Still choosing a model? Describe your part or operation. A model or drawing is not required for first contact.

The Tiezheng VT840 is a vertical drilling and tapping center documented in A/B spindle configurations. The reviewed matrix records a 1000 x 400 mm table, 800 x 400 x 350 mm X/Y/Z travel and 350 kg table load. Buyers should confirm the required spindle variant, control, workholding, tooling, automation and acceptance plan through RFQ.

Request a machine quote View specifications

Product media Tiezheng VT840 machine overview for model and workshop review.

Review VT840 for your part

For parts with drilled holes or tapped features, compare this model’s table, travels, spindle and tool interface with the fixture and hole pattern. Confirm the hole or thread size, depth, material and required cycle. A machine-family name or spindle speed alone does not establish a particular tapping capacity, cycle time or loading arrangement.

Published comparison figures

Table size: 1000 x 400 mm
X-axis travel: 800 mm
Y-axis travel: 400 mm
Z-axis travel: 350 mm

Start with your part

Describe the part or operation you know; a model and drawing are optional for first contact. Add material, critical tolerances and quantity if available.

Discuss this model

Compare this model with alternatives

What to include in your inquiry

Confirm inspection, delivery, installation, training and after-sales responsibilities in the proposal. Review delivery and support scope

Key specifications

Table size	1000 x 400 mm
X-axis travel	800 mm
Y-axis travel	400 mm
Z-axis travel	350 mm
Distance from spindle nose to table	100-500 mm
Optional Z-axis height range	300-650 mm
Maximum table load	350 kg
A-configuration spindle taper	BT30
A-configuration spindle drive	Direct drive
A-configuration spindle speed	20000 rpm
A-configuration spindle power	3.7/5.5 kW
B-configuration spindle drive	Direct drive
B-configuration spindle speed	12000 rpm
B-configuration spindle power	7.5/11 kW
G00 rapid positioning X/Y/Z	48/48/48 m/min
G01 cutting feed	1-10000 mm/min
Servo motor speed	3000 rpm
Servo motor connection	Direct coupling
Positioning accuracy	+/-0.005/300 mm
Repeatability	+/-0.003/300 mm
Minimum input increment	0.001 mm
Tool magazine type	Arm type
Tool magazine capacity	21 pcs
Maximum tool weight	6 kg
Lubricating oil capacity	4 L
Power supply capacity	18 kW
Coolant tank capacity	220 L
Approximate machine weight	3600 kg
Machine length	2000 mm
Machine width	1600 mm
Maximum machine height	2500 mm
Minimum machine height	2100 mm
Chip discharge method	Rear discharge

What is this machine used for?

Watch video

What is the Tiezheng VT840?

The VT840 is a vertical drilling and tapping center with a source-listed A/B configuration structure. The A configuration uses a BT30 drilling and tapping spindle. Both configurations use direct-drive spindles, with speed and power specifications shown below. The final machine configuration remains controlled by the signed quotation and technical agreement.

Which VT840 work envelope is documented?

The reviewed source records a 1000 x 400 mm table, 800 x 400 x 350 mm X/Y/Z travel, a 100-500 mm spindle-nose-to-table range and 350 kg maximum table load.

How do the VT840 A and B spindle configurations differ?

The A configuration is listed with a BT30 direct-drive spindle, 20000 rpm speed and 3.7/5.5 kW power. The B configuration is listed with a direct-drive spindle, 12000 rpm speed and 7.5/11 kW power. Confirm process suitability against the part drawing.

How should buyers compare the VT840?

Use the published values for model screening and RFQ preparation. Compare table size, travel, spindle variant, tool capacity, utilities and machine dimensions, then confirm control, electrical standard, workholding, tool package, chip handling, automation interfaces and acceptance criteria.

What should be sent for a VT840 RFQ?

Send the part drawing, material, critical tolerances, annual volume, target cycle time, required spindle variant, preferred control, workholding or automation requirement and destination country.

Does this specification table define the final supplied configuration?

No. Source-verified rows support comparison. The signed quotation, technical agreement and acceptance record control the final supplied configuration.

Product gallery

Machine views and production details

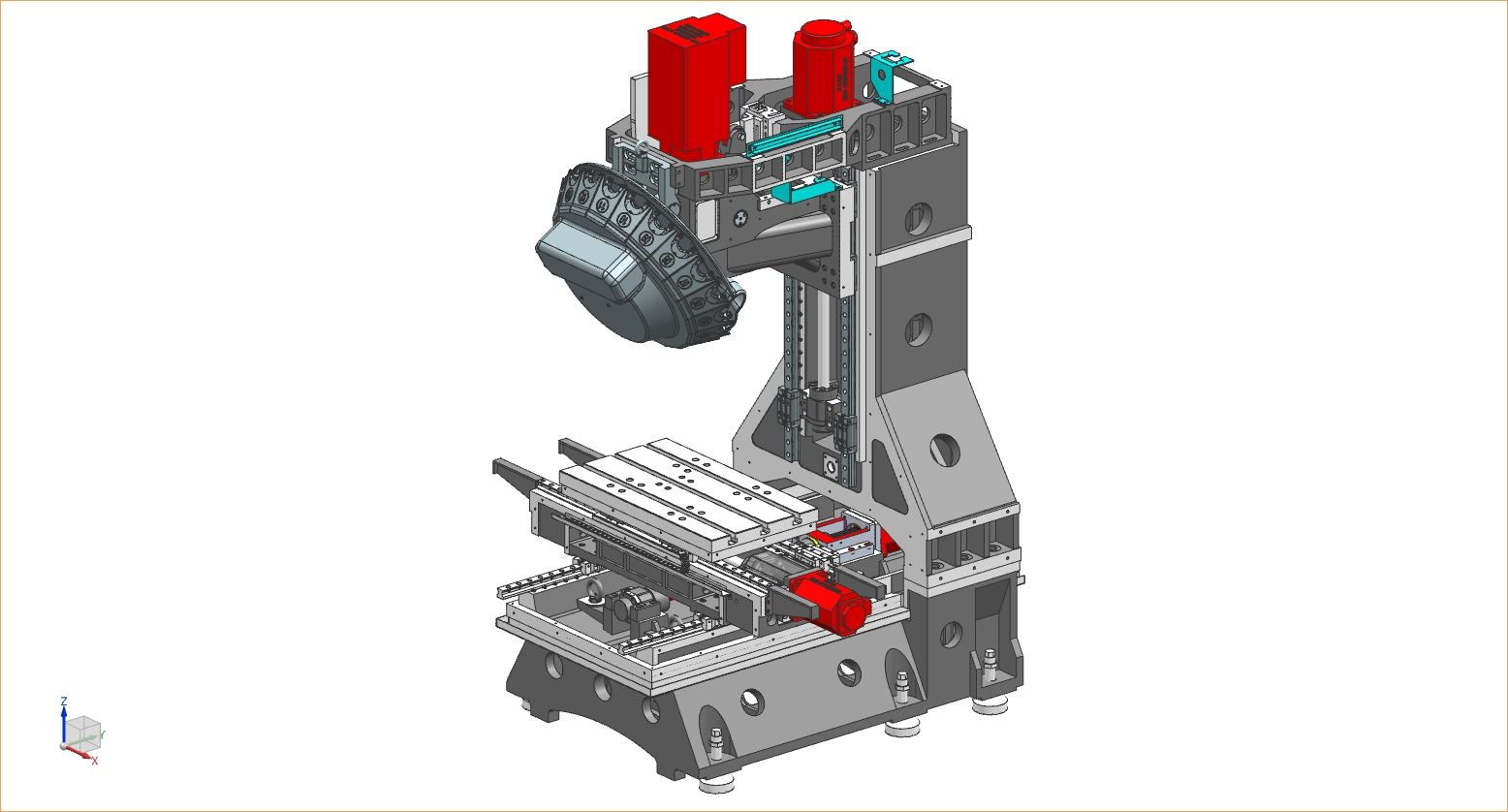

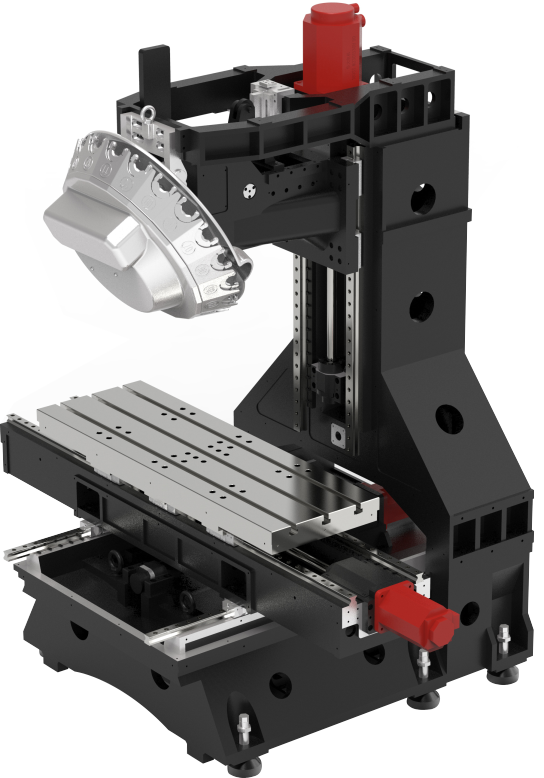

VT-series drilling and tapping machine illustration showing the bed, worktable, column and spindle assembly. — **VT-series structural illustration, not an exact-model configuration.** Open full-size view

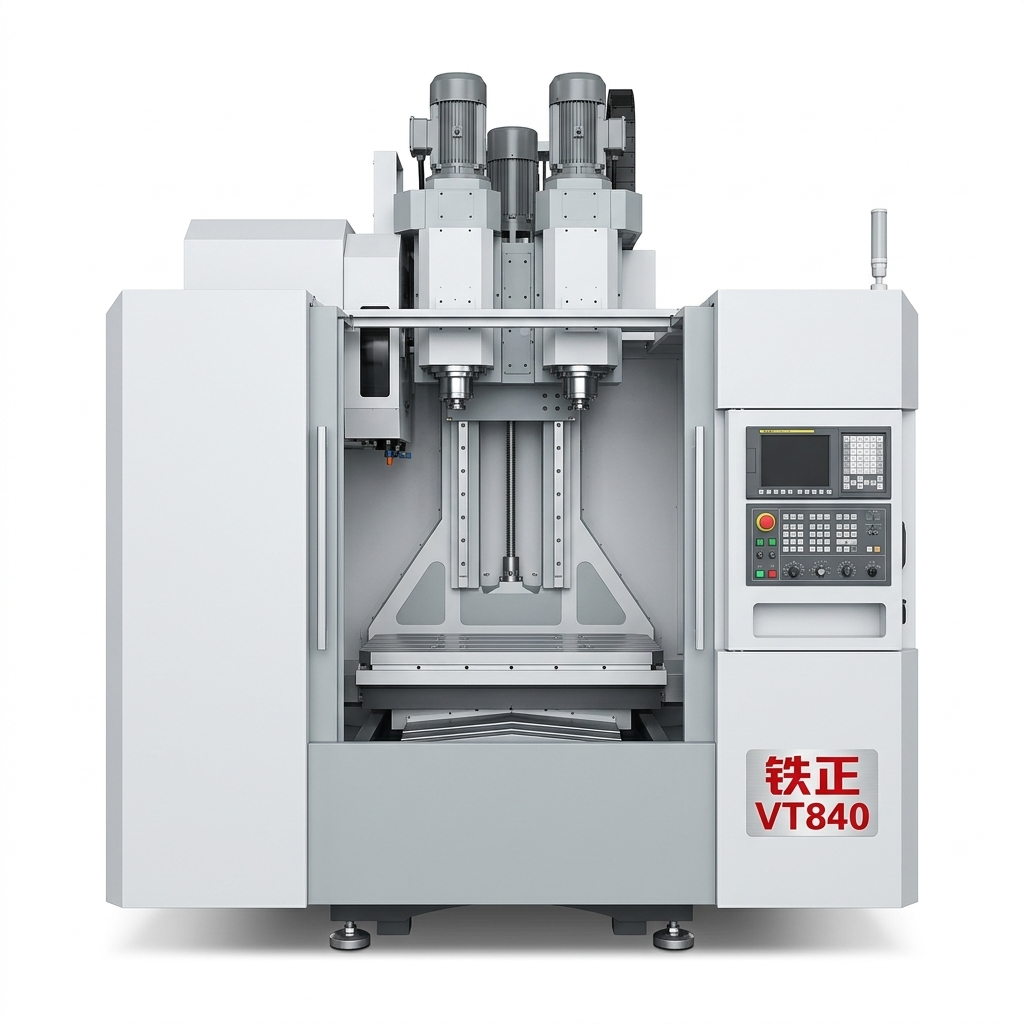

Tiezheng VT840 drilling and tapping machining center product overview image for CNC machine specification review. — **Product overview image for evaluating VT840 layout, guarding, and machine category before RFQ.** Open full-size view

Video overview

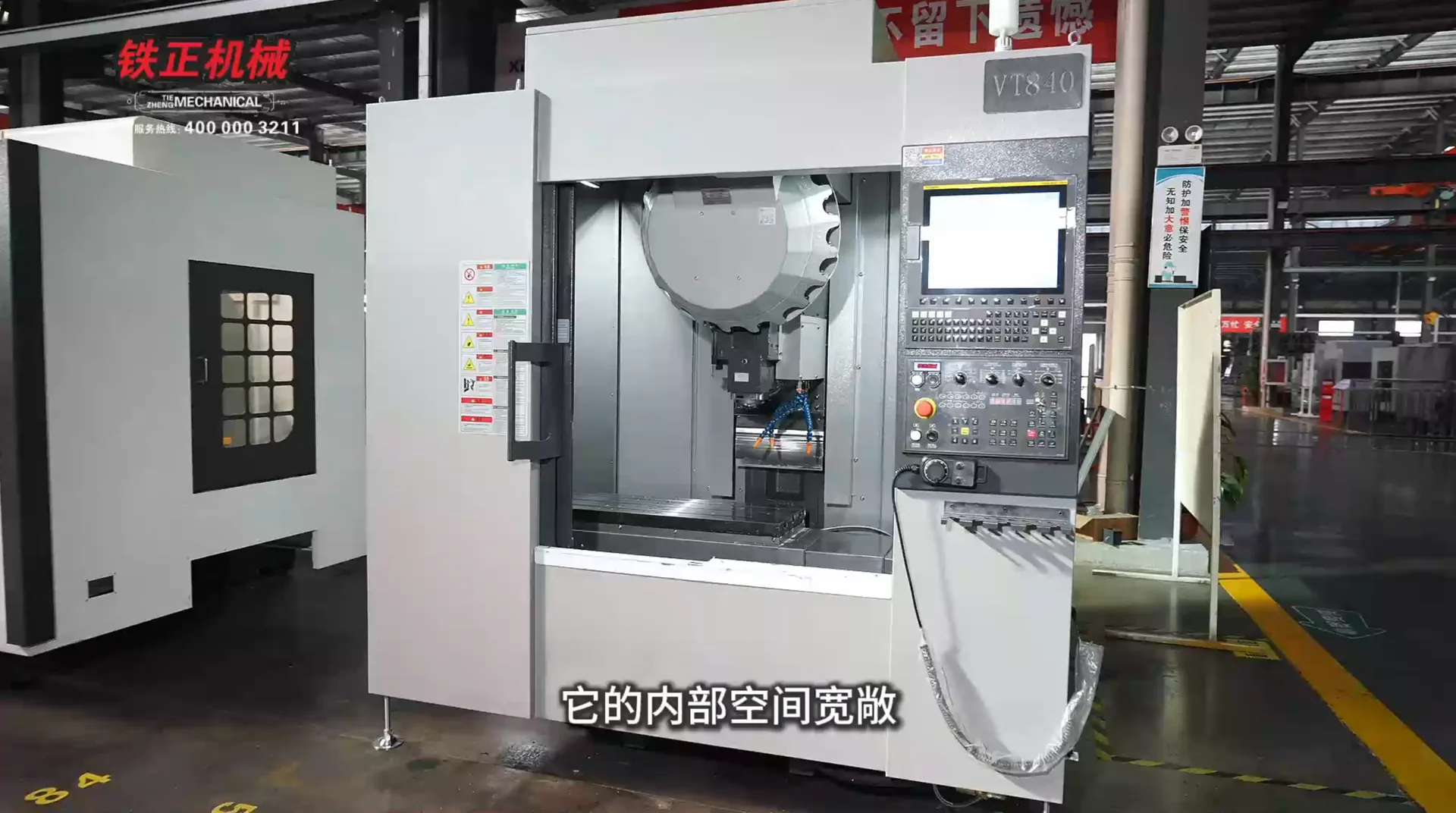

VT840 Drilling and Tapping Center — Factory Overview

Factory machine overview — Chinese narration and on-screen text. English visual summary: a presenter introduces the VT840 drilling and tapping center in the workshop, followed by views of the machine, spindle and tool magazine, and machining under coolant. Shown equipment and configuration choices are not automatically included. Use the specification table and confirm the selected build in your quotation. This summary is not a full translated transcript.

Technical documents

Which documents should buyers review?

Request the latest configuration details, drawing review and applicable technical documents with your RFQ.
